Scalable Cable Dums

Technical specifications

Measures

Height
cm
Depth
cm
Core
mm
Width
V1.400-
PV1.800
620 600 300 variable
PV2.300-PV2.800 520 500 220 variable
PV3.400-PV3.800 620 600 220 variable
PV8.300-PV8.800 820 800 300 variable

Weight: depending on size / 17 kg (PV2.300)- 28 kg (PV8.800)

Download

Please download your leaflet by clicking the link.

Leaflet Scalable Cable Dums

Table Drum Capacities

Patents

DE 10 2009 026 208 A1 | PCT/DE2010/075061 | WO 2011/009456 A2

Scalable cable reels

Scalable cable reels in 22 sizes optimised for fibre technology and large capacities
The customised cable drums of the ORBITER Research PV- series comply with any type of fibre optic and conventional cables and mobile applications.
Expensive fibre technology is protected properly during handling and transportation by simple mechanical means.
Orbiter PV- cable drums are delivered in fixed dimensions of height and depth and scalable widths.
Thereby it can be chosen out of 22 sizes with 2 different core diameters.

These two main characteristics allow perfect protection of sensitive fibre technology and enhanced exploitation of limited storage space especially in mobile units.

According to the needed capacity, resulting from given lenght and diametre of a cable the scalable witdhs of a drum are determined. These characteristics allow our customers to make best use of space by using cable drums delivered as small as possible or to handle extremely large volumes. Simply specify your cable’s length + diameter and we will offer you the best fitting drum size. Please download and review the table, which displays all deliverable drum sizes referring to given cable diameters and lengths.

Of course Orbiter drums are stackable, equipped with a permanent crank and round horizontal tubes to allow for better handling.

This product warrants a particularly low total cost of ownership provided by extreme durability based on very high quality. Moreover cost for replacements and repairs for the drums, but mainly for connectors and cables are significantly reduced.

Apart from adaptability protection and longevity Orbiter cable drums take large capacities, i.e. our largest drum can take up to 7000 meters of 6 mm or 2500 meters of 9,2 mm cable.

Rapid Standardized Customization

The production process follows the concept of standardized customisation. Our manufacturing process enables customisation by simply providing a large range of different drum sizes in variable formats to match all sorts of customer requirements regarding the drum’s total space consumption and fitting accuracy according to various given space conditions. The system provides storage + handling for small and large cable capacities.

IT-controlled manufacturing has streamlined our individualized manufacturing to a point where the output is no longer limited to small quantities only. This enables us to deliver customised manufacturing which is enhanced by the service and flexibility of our delivery program without limitations to output quantities.

Handling

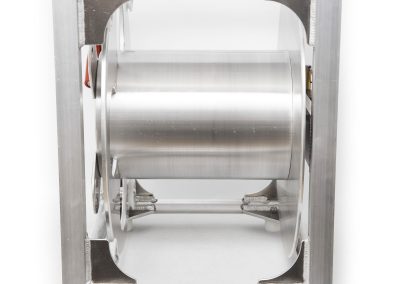

The cable drum’s lightweight aluminum structure leaves the user with less weight to carry. The round aluminum tubes offer a comfortable and painless grip which makes transportation easier.

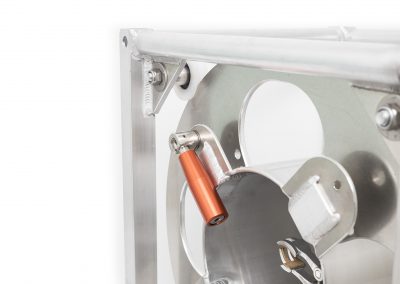

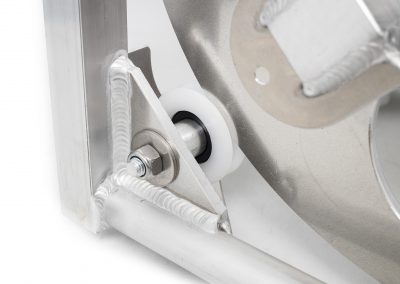

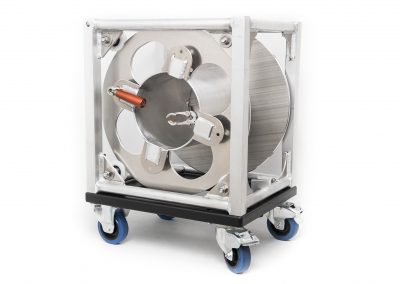

The drum can easily be rotated by a manual crank which is fixed to the drum. This feature makes it impossible to forget your crank when working in remote places, far away from your mobile unit. All bearings are sealed high end ball bearings allowing to rotate the drum even if heavily loaded.

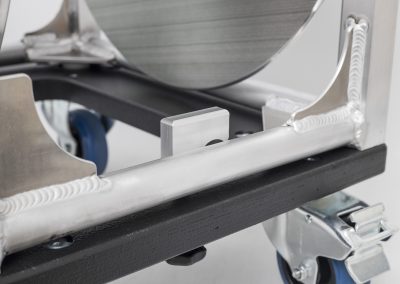

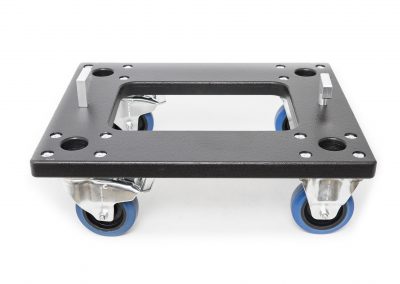

The drums can be stacked up to 4 meters/ 13 ft high by means of centering pins.

Cable & Connector Protection

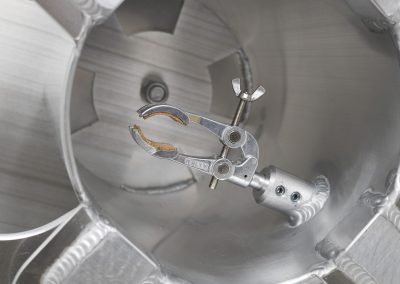

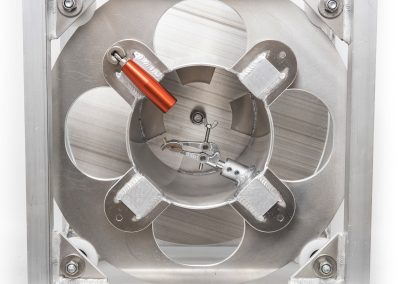

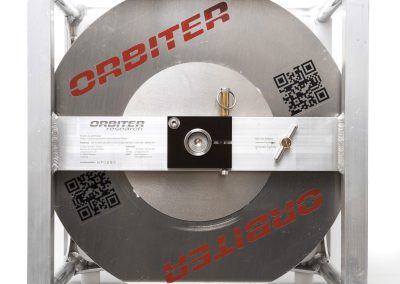

Our cable drums are particularly suited for fiber optic cables, which require more careful handling and storage than conventional cables. It has excess patch storage room and an adjustable fixing point for the connector inside the drum, to avoid damage to sensitive and expensive fibre connectors.

The entire design and form of our drums comply with the standards for fibre optics. This ensures that cables will neither be damaged by sharp edges nor by too narrow radii, as excessive bending of cables may lead to damage or loss in signal quality. All of this means the best possible adaptation of our cable drums to requirements of fibre optics, limited space, and good working conditions.

Efficiency
The ORBITER cable drum system saves money. It features a very robust design to match the extraordinary stresses and strains of everyday OB-use. This warrants outstanding longevity in comparison to other products wearing out much quicker and incurring replacement cost as well as large costs for damaged fibre technology. In this respect our product warrants a particularly low total cost of ownership. Just consider that our first cable drums which had been delivered as early as 2005 and have by now delivered millions of cycles have to this day remained free of any major customer complaints.
Main features:
• Optimised for fibre optics
• 22 sizes by customised widths
• Large sizes available
• Protective connector bracket
• Lightweight + very robust aluminum structure
• Noncorrosive
• Ergonomic aluminum profiles
• Safe & easy stacking
• Permanently attached fold-away crank

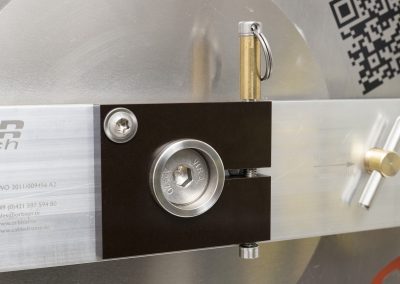

• Tension brake with steady + adjustable friction
• Replaceable feet + brakes
• 1 year warranty

Options:
• Rentals
• Comprehensive consultancy
